POLYFOAM
PRODUCT INFORMATION
H 3.6
H 3.6
GENERAL DESCRIPTION
Underlay including a moisture barrier for floating floors installed in commercial and residential areas.
PolyFoam is recommended for use with all Junckers solid hardwood floors, where a moisture barrier membrane is required.

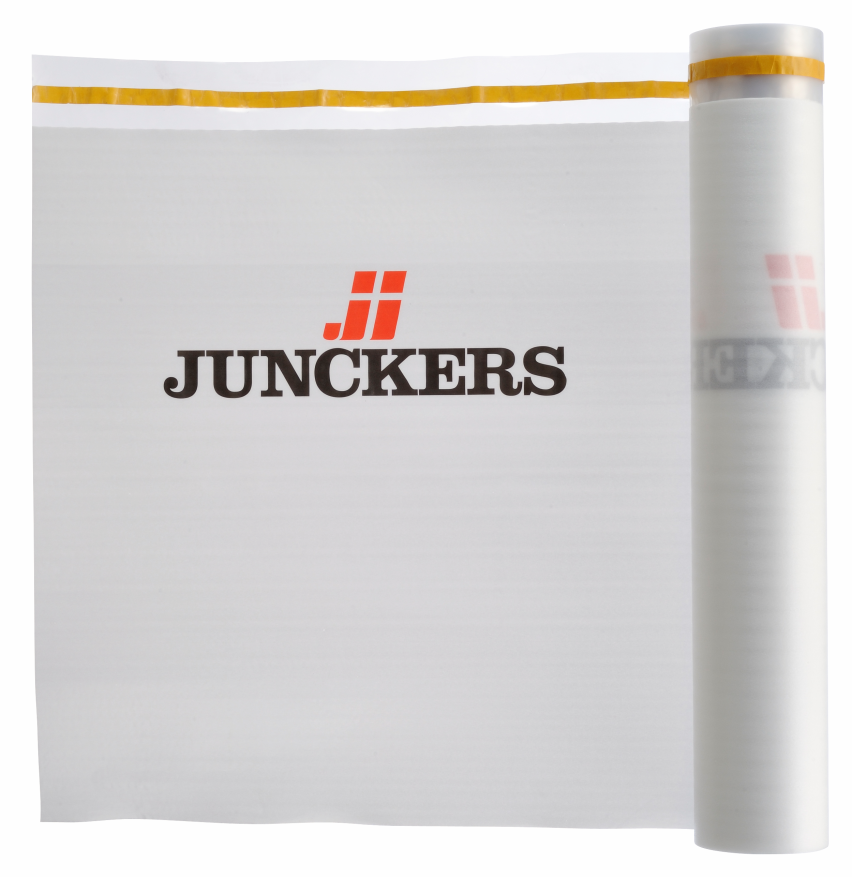

PolyFoam is a resilient, step sound absorbing 2 in 1 underlay mat for floating floors. It consists of a polythene membrane laminated to an extruded foam mat in such a way as to allow a 100 mm overlap of polythene on one side with a built-in tape.
PolyFoam is non-absorbent and must be laid foam-side down to prevent perforation of the membrane by sand or gravel particles.
PRODUCT DATA
Material: Extruded LDPE with a closed cell structure
Weight: approx. 70 gram/m²
Thickness: 2.2 mm (Foam: 2.0 mm and Polythene: 0.2 mm)
Width: 1.1 m (Covers 1.0 m)
Roll size: 15 and 30 m²
Colour: White
TECHNICAL PROPERTIES
Temperature of application: -60°C to +80°C
Thermal conductivity: 0.05 W/mK (DIN 52612)
Water absorption: 0.5 % (ASTM C-272-53)
Age resistance: 50 years (SP 0414 and ISO 1798)
Diffusion density: 750 PAM
