UNOBAT 53-68-80 | Sports Flooring
The UnoBat family is a batten based system that offers thickness flexibility when matching existing slab recesses. UnoBat battens offer a good value price point and are designed for use over flat subfloors.
The 7/8” (22mm) solid hardwood floor boards are fastened to a resilient subfloor system consisting of single layer engineered battens mounted a continuous layer of shock absorbing foam.
The available batten thicknesses are 31mm, 46mm and 58, incl. foam.
Facts
PERFORMANCE |
UnoBat 53 (cc 336): EN 14904 class A4 & FIBA level 1 |
USE |
All types of sport Multi-functional sports halls From small leisure centres to large arenas Refurbishment |
FLOORBOARD TYPE |
Prefinished 7/8” (22 mm) 2-strip solid hardwood |
SUBCONSTRUCTION |
Single layer sleeper |
REQUIRED SUBFLOOR |
Even |
CONSTRUCTION HEIGHT |
2 3/32” (53 mm), 2 43/64” (68 mm) or 3 5/32” (80 mm) |
SANDING AND RE-SEALING |
Yes to bare wood 8-10 times |
SUITABLE FOR UNDERFLOOR HEATING |
Yes |

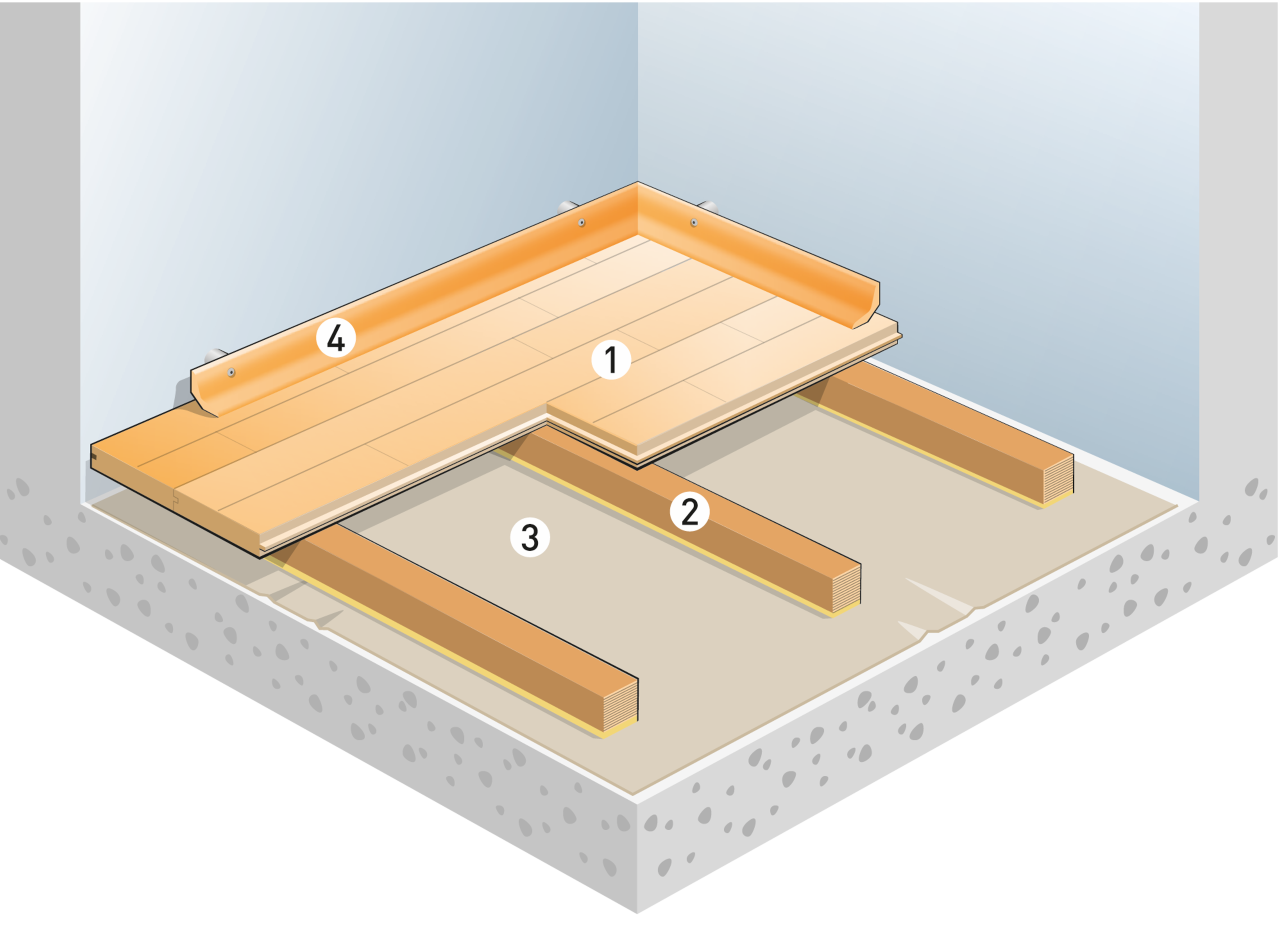

SYSTEM COMPONENTS
1. 7/8" (22 mm) x 5" (129 mm) x 12’ (3700 mm) solid hardwood floorboards.
2. Unobat sleeper system including sportsfoam
3. PE moisture barrier
4. Combi sports skirting
TEST RESULTS* |
||||
|
|
GENERAL REQUIREMENTS EN 14904:A4 |
REQUIREMENTS EN 14904:A3 |
BATTEN DISTANCE C/C 411MM |
BATTEN DISTANCE C/C 336MM |
SHOCK ABSORPTION |
≥ 55 < 75 % |
≥ 40 < 55 % |
61% |
58% |
VERTICAL DEFORMATION |
≤ 2.3 < 5.0mm |
≥1.8 <3.5mm |
2.9 mm |
2.5 mm |
BALL BOUNCE |
≥ 90 % |
≥ 90 % |
92% |
94% |
FRICTION |
≥ 80 ≤ 110 |
≥ 80 ≤ 110 |
99 |
99 |
ROLLING LOAD |
≥ 1500 N |
≥ 1500 N |
3000 N1 |
3500 N1 |
POINT LOAD |
None |
None |
5000 N ~ 500 kgs2 |
5500 N ~ 550 kgs2 |
* UnoBat 53
1) Junckers test with solid rubber wheels, width = 2” (50mm), diameter=4” (100mm).
2) Junckers test with 4” x 4” (100mm) point load.
More information
CHOICE OF FLOORBOARD
A Junckers sports floor is made from 100% solid hardwood and will last for generations. Each floor board is made from two rows of staves and is tongue and groove jointed all round.
The floors are extremely stable and therefore cause no challenges when humidity levels change through the year. We take far longer than normal over the drying process to ensure that the movements that occur naturally in all wood is fully controlled and kept to a minimum. Our Beech sports floors are dried using Junckers unique press drying method. Our ash and maple sports floors are kiln dried.
Our floors are ready to use as soon as they are fitted. This is because Junckers floors are sealed in the factory with our own produced hard wearing polyurethane lacquer.
All Junckers solid hardwood sports floors have the Danish Indoor Climate Certificate for low emissions of organic substances and can be delivered with either a FSC® or PEFC accreditation.
We guarantee fast and easy installation. Each floor board has a length of 3700mm and covers approx. 0.5 m².
