SOLID HARDWOOD PLANK FLOORS
PRODUCT INFORMATION
B 5.0
B 5.0
PRODUCT SPECIFICATION
Junckers solid hardwood planks are factory finished and ready to install in accordance to Junckers Laying Instructions. A plank is made as one whole floorboard and is along the length of the board provided with a bevelled edge of approx. 0.5 mm. Each plank is tongued and grooved on all four sides.
PRODUCT DATA
Nominal plank dimensions:
Thickness x Width:
15 x 129 mm (5/8″ × 5″)
20.5 x 140 mm (3/4″ × 5 1/2″)
20.5 x 185 mm (3/4″ × 7 1/4″)
Length 15 × 129 mm (5/8” × 5”)
2500 mm (98 7/16") / 2400 mm (94 1/2") / 2200 mm (86 5/8") / 2100 mm (82 11/16") / 2000 mm (78 3/4") / 1800 mm (70 7/8") / 1600 mm (63") / 1500 mm (59 1/16") / 1200 mm (47 1/4") / 800 mm (31 1/2") / 600 mm (23 5/8")
Length 20.5 x 140/185 mm 20.5 × 140 mm (3/4” × 5 1/2” or 7 1/4”):
Nature: 600-2800mm (23 5/8”–110 1/4”) (100mm (4” ) interval)
All other grades: 3000* (118 1/8”) / 2700* (106 5/16”) / 2400 (94 1/2”) / 2100 (82 11/16”) / 1800 (70 7/8”) / 1500 (59 1/16”) / 1200 (47 1/4”) / 900 (35 7/16”) / 600 mm (23 5/8”)
* Not Black Oak
Tolerances, thickness and width:
Thickness: ±0.2mm
Width 15 × 129 mm (5/8” × 5”): ±0.4 mm
Width 20.5 × 140/185 mm (3/4” × 5 1/2” or 7 1/4”): ±0.5 mm
Length: ±1.0mm
Landing deviations/lipping: 0.3mm
Plank end squareness: ±0.3mm
Drying method: Kiln dried.
Average moisture content, MC:
Oak: 8 % (±2 %).
Black Oak: 9 % (±2 %).
PRODUCT RANGE
|
Thickness/Width/Woodspecies |
Grade |
Surface |
Product Variants |
|
15 × 129 mm (5/8” × 5”) Oak |
Classic, |
Ultra mat lacquered |
|
|
20.5 × 185 mm (3/4” × 7 1/4”) Oak |
Harmony |
||
|
20.5 × 140 mm (3/4” × 5 1/2”) Oak Nature |
Nature |
Ultra mat lacquered |
Colours and textured4) |
|
15 × 129 mm (5/8” × 5”) Black Oak |
Harmony |
|
|
|
20.5 × 185 mm (3/4” × 7 1/4”) Black Oak |
Harmony |
1) See possibilities in the Product Selector at the web site.
2) See section "Ships decking".
3) See section "Whalebone/Herringbone Planks".
4) Minimum order quantity 250 m2 (ca. 2691 ft²)
SHIPSDECKING

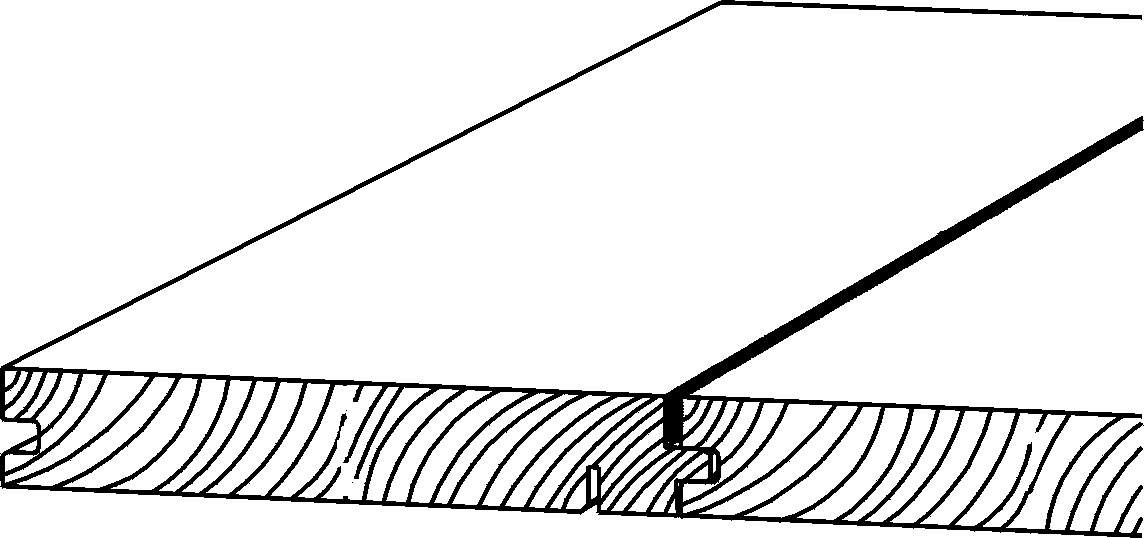

Strip made of foamed PVC with closed cells to absorb natural movements in the hardwood floor, see fig. 1.
The strip measures 3x8 mm and installed it provides a 2 mm wide joint, which varies over the year according to changes in the relative humidity.
We do not recommend shipsdecking for Glue Down System.
Fig. 1
WHALEBONE / HERRINGBONE PLANKS
Junckers plank floors are also available as patterned floors. This means that the floorboards are cut to fixed lengths and are delivered in a right- and left-handed version. This enables installation in different patterns, e.g. herringbone. Whalebone is delivered surface treated from the factory.
Nominal board dimensions:
Thickness x width x length
- 20.5 × 140.0 × 701 mm (3/4” × 5 1/2” × 27.5”)
- 20.5 × 185.0 × 741 mm (3/4” × 7 1/4” × 29 3/16”)
- 15.0 × 129.0 × 775 mm (5/8” × 5” × 30 1/2”)
Tolerances: Length: +/- 0.2 mm. Thickness and width as described at page 1.
Product range (wood species and surface treatment): See options in the Product Selector at the web site.
TECHNICAL PROPERTIES
Resistance to Indentation (indicative values):
All variants: Approx. 3.4 Hardness Brinell
Slip Resistance (indicative values):
Oiled and lacquered: Approx. 0.4
Fire Classification, (EN 13501-1):
Surface treated: Cfl – S1
Untreated: Dfl – S1
Thermal Conduction: Approx. 0.17 W/mK
Heat Resistance:
20.5 mm (3/4"): Approx. 0.12 m² K/W
15 mm (5/8"): Approx. 0.09 m² K/W
|
Light reflection value (LRV) |
||
|
|
Ultra matt |
Silk matt |
|
Oak |
27 |
26 |
Substances on the candidate list (ECHA)
Junckers wooden floors do not contain SVHC substances (Substances of Very High Concern) listed on the candidate list amounting to more than 0.1 %. The candidate list registers particularly problematic substances in relation to human health and the environment. (http://echa.europa.eu/candidate-list-table).
SURFACE TREATMENT
LACQUERED
Oak, ultra matt and silk matt:
Priming: Several coats of UV-light curing primer.
Top finish: Two-component polyurethane lacquer.
Total film thickness: Min. 40 µ.
Oak Pearl:
Priming: Water based transparent stain.
Intermediate treatment: Several coats of UV-light curing lacquer.
Top finish: Two-component polyurethane lacquer, ultra matt.
Total film thickness: Min. 40 µ.
Black Oak:
Pre-treatment: NH3-treatment to achieve the dark colour.
Intermediate treatment: Several coats of UV-light curing lacquer.
Top finish: Two-component polyurethane lacquer, ultra matt.
Total film thickness: Min. 40 µ.
Oak, other colours:
Priming: Coloured stain.
Intermediate treatment: several coats of UV.
Top finish: Two-component polyurethane lacquer, ultra matt
Total film thickness: Min. 40 µ.
OILED
Priming: Surface saturation using oxidative drying urethane oil.
Top finish: Oxidative drying urethane oil.
Total oil consumption: Addition to a full surface saturation.
UNTREATED: Final sanding to grit 150.
PACKING AND WEIGHT
15 x 129 mm (5/8” × 5”) :
Wrapped in LDPE plastic and cardboard.
Random length boards from 600–2500 mm (23 5/8”–98 7/16”). Each pack contains 6 layers of planks.
A pack may contain up to 50 % planks in lengths shorter than 1500 mm (59 1/16”).
Delivery happens in a mix of pack lengths, as indicated below.
Pack length / Number of m² per pack:
1500 mm (59 1/16”) / 1.16 m² (ca. 12.49 ft²)
1600 mm (63”) / 1.24 m² (ca. 13.35 ft²)
1800 mm (70 7/8”) / 1.39 m² (ca. 14.96 ft²)
2000 mm (78 3/4”) / 1.55 m² (ca. 16.68 ft²)
2100 mm (82 11/16”) / 1.63 m² (ca. 17.54 ft²)
2200 mm (86 5/8”) / 1.70 m² (ca. 18.30 ft²)
2400 mm (94 1/2”) / 1.86 m² (ca. 20.02 ft²)
2500 mm (98 7/16”) / 1.94 m² (ca. 20.88 ft²)
Weight: All variants 12.06 kg/m2
20,5 x 140 mm (3/4” × 5 1/2”):
Wrapped in LDPE plastic and cardboard.
Random length boards from 600-3000 mm (23 5/8”–118 1/8”). Each pack contains 6 layers of planks.
1 layer may contain a mix of the standard lengths.
Delivery happens in a mix of pack lengths, as indicated below.
Pack length / Number m² per pack:
1500 mm (59 1/16”) / 1.26 m² (ca. 13.56 ft²)
1800 mm (70 7/8”) / 1.51 m² (ca. 16.26 ft²)
2100 mm (82 11/16”) / 1.76 m² (ca. 18.94 ft²)
2400 mm (94 1/2”) / 2.02 m² (ca. 21.75 ft²)
2700 mm* (106 5/16”) / 2.27 m² (ca. 24.45 ft²)
3000 mm* (118 1/8”) / 2.52 m² (ca. 27.11 ft²)
* Black Oak is not available in this length.
Weight: All variants 16.02 kg/m²
20,5 x 185 mm (3/4” × 7 1/4”):
Wrapped in LDPE plastic and cardboard.
Random length boards from 600-3000 mm (23 5/8”–118 1/8”). Each pack contains 6 layers of planks.
1 layer may contain a mix of the standard lengths.
Delivery happens in a mix of pack lengths, as indicated below.
Pack length / Number of m² per pack:
1500 mm (59 1/16”) / 1.11 m² (ca. 11.95 ft²)
1800 mm (70 7/8”) / 1.33 m² (ca. 14.32 ft²)
2100 mm (82 11/16”) / 1.55 m² (ca. 16.68 ft²)
2400 mm (94 1/2”) / 1.78 m² (ca. 19.16 ft²)
2700 mm (106 5/16”)* / 2.00 m² (ca. 21.53 ft²)
3000 mm (118 1/8”)* / 2.22 m² (ca. 23.89 ft²)
* Black Oak is not available in this length.
Weight: All variants: 16.02 kg/m2
Whalebone, 15 & 20.5 mm (5/8” & 3/4”)
Wrapped in LDPE plastic.
20.5 x 140.0 x 701 mm (3/4” × 5 1/2” × 27.5”)
Pack size: 12 boards (1.18 m²)
Weight per pack: 17.3 kg (14.7 kg/m²)
20.5 x 185.0 x 741 mm (3/4” × 7 1/4” × 29 3/16”)
Pack size: 8 boards (1.1 m²)
Weight per pack: 16.2 kg (14.7 kg/m²)
15.0 x 129.0 x 775 mm (5/8” × 5” × 30 1/2”)
Pack size: 16 boards (1.60 m²)
Weight per pack: 19.2 kg (12.0 kg/m²)
20.5 x 140 mm Oak Nature:
Wrapped in LDPE plastic and cardboard.
Random length boards from 600-2800 mm. Each pack contains 4 layers of planks.
1 layer may contain a mix of the standard lengths.
Delivery happens in a mix of pack lengths, as indicated below.
20.5 x 140 mm Oak Nature
Pack length / Number m² per pack:
1500 mm / 0.84 m2
1600 mm / 0.90 m2
1700 mm / 0.95 m2
1800 mm / 1.01 m2
1900 mm / 1.06 m2
2000 mm / 1.12 m2
2100 mm / 1.18 m2
2200 mm / 1.23 m2
2300 mm / 1.29 m2
2400 mm / 1.34 m2
2500 mm / 1.40 m2
2600 mm / 1.46 m2
2700 mm / 1.51 m2
2800 mm / 1.57 m2
Weight: All variants 16.02 kg/m²
