UNOBAT 62+ | Sports Flooring
The UnoBat 62+ sports floor system provides excellent performance and safety, along with the ability to accommodate all types of irregular subfloors.
The top solid hardwood is fastened to a resilient subfloor system consisting of 12’ long, ply-construction sleepers with pre-attached shock absorbing pads. The pre-attached pads snap-lock into either a J-lock cradle, or if the floor needs to be leveled, a J-Lock escalating wedge.
The J-Lock cradle serves as a durable stop block for flat subfloors. The J-Lock escalating wedge allows for the quick correction of uneven subfloors into flat, ideal playing surfaces.
Support blocks are available in a variety of thicknesses to easily increase the height of the floor system as needed.
Looking for specs and documentation? Download our specs below
Facts
PERFORMANCE |
Area-elastic according to EN 14904 class A4 |
USE |
All types of sport Multi-functional sports halls From small leisure centres to large arenas Refurbishment |
HARDWOOD TYPE |
Prefinished 7/8” (22 mm) 2-strip solid hardwood |
SYSTEM CONSTRUCTION |
Single layer sleeper |
SLEEPER SPACING |
Either 13 ¼” (336 mm) or 16 3/16” (411 mm) |
REQUIRED SUBFLOOR |
Flat or irregular |
CONSTRUCTION HEIGHT, PACKINGS EXCLUDED |
2 3/8” (62 mm) |
CONSTRUCTION HEIGHT, PACKINGS &
|
3 1/4” – 8 1/4” (82-209 mm) |
JUNCKERS 25 YEARS FATIGUE TEST |
✔ |
SANDING AND RE-SEALING |
Yes, 8-10 times to bare wood |
COMPATIBLE WITH RADIENT HEATING |
Yes |

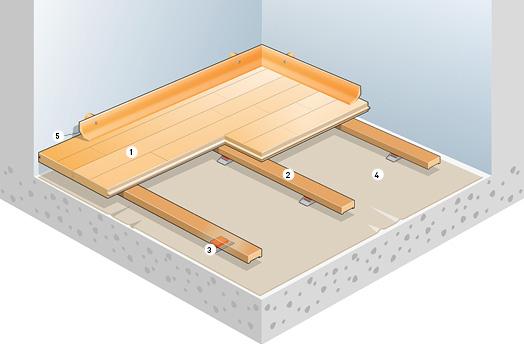

SYSTEM COMPONENTS
1. 7/8" (22 mm) x 5" (129 mm) x 12’ (3700 mm) solid hardwood
2. UnoBAT 62+ sleeper: 1" (25.5 mm) x 2 3/8" (60 mm) x 11’ 9" (3600 mm) with shock pad
3. J-LockWedge
4. Polythene moisture barrier
5. Beech Sport Wall Base
TEST RESULTS |
|||
|
|
REQUIREMENTS EN 14904:A4 |
BATTEN DISTANCE C/C 411MM |
BATTEN DISTANCE C/C 336MM |
SHOCK ABSORPTION |
≥ 55 < 75 % |
67% |
65% |
VERTICAL DEFORMATION |
≥ 2.3 < 5.0 mm |
3.0 mm |
2.6 mm |
BALL BOUNCE |
≥ 90 % |
93% |
94 % |
FRICTION |
≥ 80 ≤ 110 |
~ 85 |
~ 85 |
ROLLING LOAD |
≥ 1500 N |
3000 N1 |
3500 N1 |
POINT LOAD |
None |
5500 N ~ 550 kgs2 |
6000 N ~ 600 kgs2 |
2) Junckers test with 4” x 4” (100mm) point load.
BRUCE PULMAN, PAPAKURA NEW ZEALAND
6100 m² 22mm Junckers Solid Beech on Junckers UnoBAT 62+.
UNOBAT 62+ J-LOCK LEVELLING SYSTEM
See how Junckers unique J-lock levelling system works
More information
SOLID HARDWOOD FLOORING CHOICES
A Junckers sports floor is made from 100% solid hardwood and will last for generations. Each plank is made from two rows of staves and is tongue and groove jointed on all four sides.
The floors are extremely stable and therefore minimizes challenges when humidity levels change through the year. We take far longer than normal over the drying process to ensure the movements that occur naturally in all wood is fully controlled and kept to a minimum. Our Beech sports floors are dried using Junckers unique press drying method. Our ash and maple sports floors are kiln dried.
Our hardwood floors are ready to use as soon as they are installed. This is because Junckers floors are sealed in the factory with our own produced hard wearing polyurethane.
All Junckers solid hardwood sports floors have the Danish Indoor Climate Certificate for low emissions of organic substances and can be delivered with either a FSC® or PEFC™ accreditation.
The installation process is always fast, easy and clean. Each prefinished plank is 12 foot long, and covers approximately 5 square feet.
